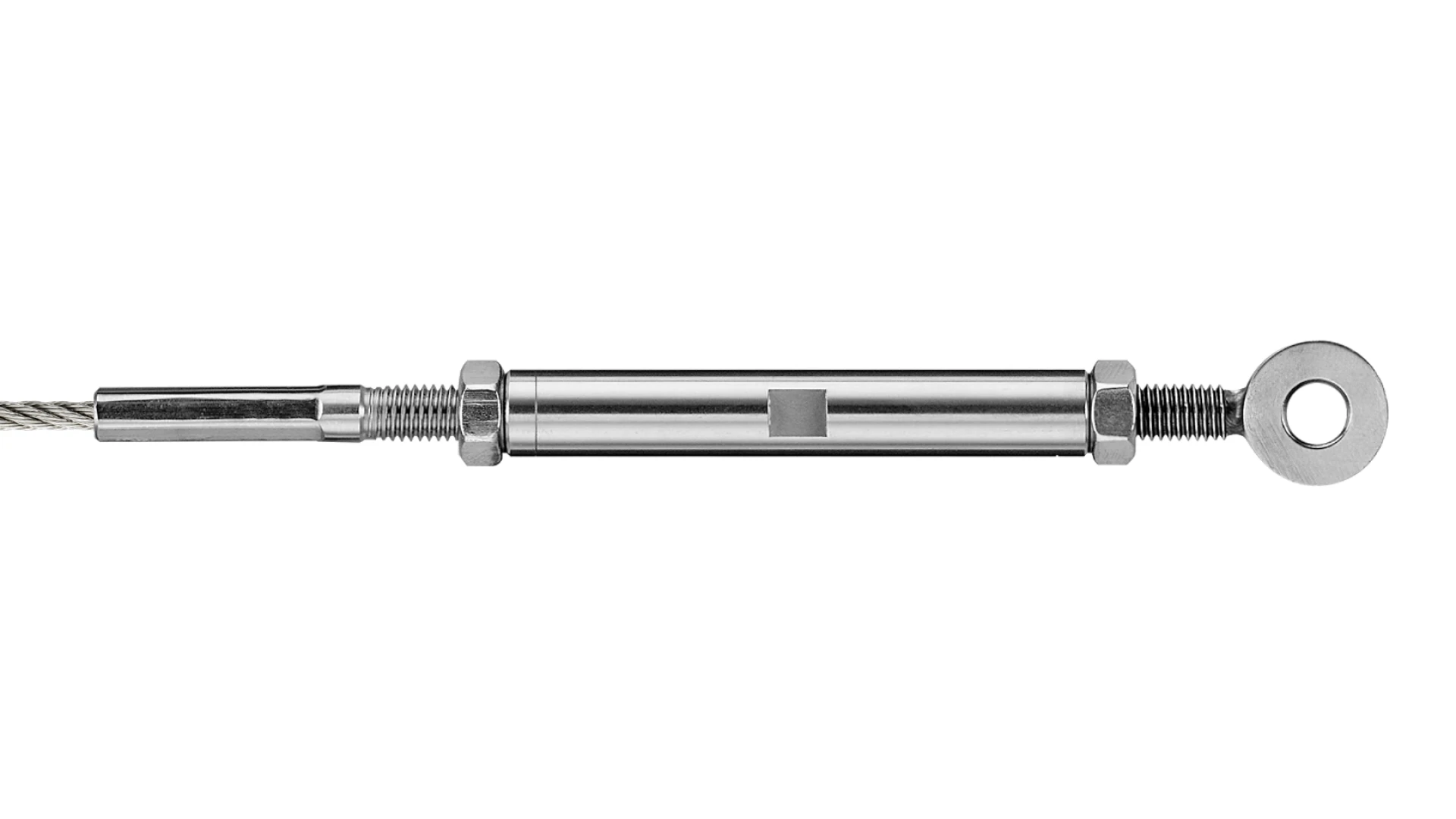

Tensioning sleeve with eye GreenGuide swaged
| No. | ø | a | b1 | b2 | k | ø d1 | ø d2 | ø d3 | sw | F_Rd kN | - | + | kg | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30911-0400-05 | 4 | M8 | 159 | 80 | 12 | 8.2 | 12 | 20 | 5 | 5.46 | 18 | 8 | 0.1120 | ||||||||||||
Further informations
Price basis / tiered prices | |||||||||||||||||||||||||
Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.
For greening systems. Compatible with spacers GreenGuide 30919-0100-00 and 30919-0100-10.
The screw-in depth of the threads must be at least 1.5 times the thread diameter.
(+) = extend (loosen)
(-) = shorten (tighten)
The marking on the shaft is to identify the left-hand thread.
The functionality is ensured only by using circular wire strand ropes 10820-0400.
Other sizes available upon request
