Product

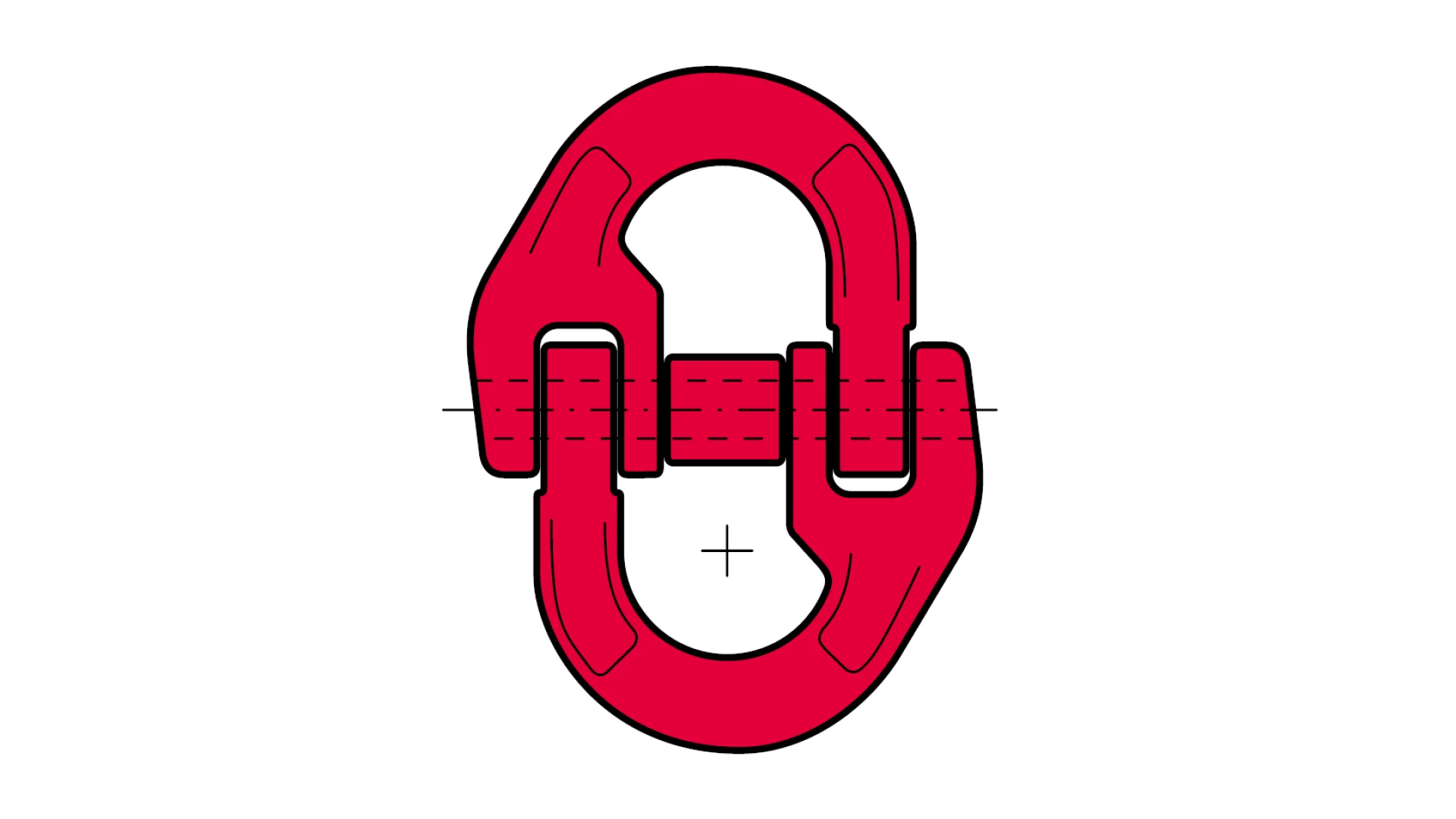

Coupling link GK 8

No. ø b1 b2 b3 b4 k1 k2 r WLL kN kg
80390-0600 6 60 46 18 42 13 7 8 11.2 0,1000

Further informations

Diameter: 6 mm
Weight: 0,1000 kg
Material group: steel
Nominal strength (Mat. strength): class 8

Price basis / tiered prices

Create PDF
80390-0780 7-8 76 58 24 50 16 9 11 20 0,1000

Further informations

Diameter: 7-8 mm
Weight: 0,1000 kg
Material group: steel
Nominal strength (Mat. strength): class 8

Price basis / tiered prices

Create PDF
80390-1000 10 96 69 26 68 19 11 12 31.5 0,3000

Further informations

Diameter: 10 mm
Weight: 0,3000 kg
Material group: steel
Nominal strength (Mat. strength): class 8

Price basis / tiered prices

Create PDF
80390-1300 13 125 91 37 85 26 16 16 53 0,7000

Further informations

Diameter: 13 mm
Weight: 0,7000 kg
Material group: steel
Nominal strength (Mat. strength): class 8

Price basis / tiered prices

Create PDF
80390-1600 16 139 102 40 97 26 19 20 80 1,1000

Further informations

Diameter: 16 mm
Weight: 1,1000 kg
Material group: steel
Nominal strength (Mat. strength): class 8

Price basis / tiered prices

Create PDF

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

Safety facteur 4

Other sizes available upon request
