Rental service for rope tension meters

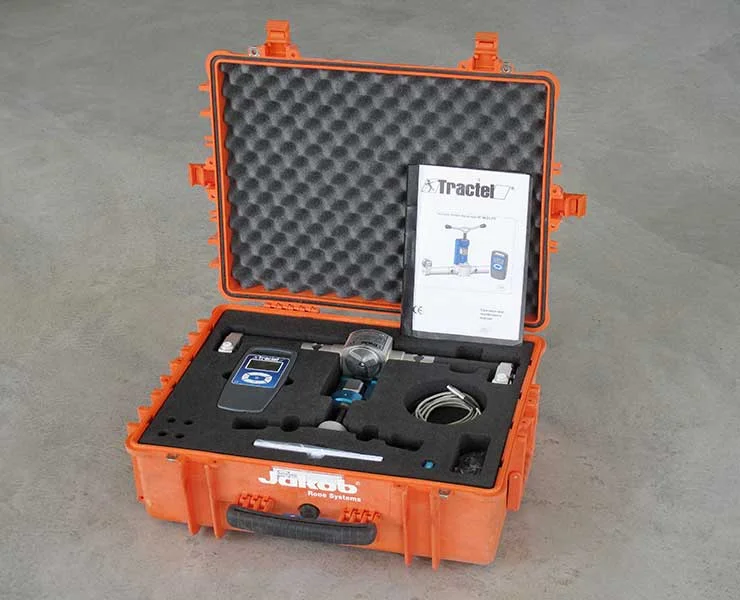

Tension meter Dynarope HF36/1/LPT
Rental number
20800-8001
Rope diameter
5–13 mm
Case dimensions (H × W × D)
560 × 410 × 220 mm
Net weight of the device
9 kg
Calibration
(Rope diameter, rope construction, material, measurement range)
5 mm, 1 × 19, steel, 0.6–6 kN
6 mm, 1 × 19, steel, 0.7–9 kN
7 mm, 1 × 19, steel, 1–12 kN
8 mm, 1 × 19, steel, 1.5–15 kN
10 mm, 1 × 19, steel, 2–24 kN
12 mm, 1 × 19, steel, 3.1–33,5 kN
8 mm, 6 × 36, steel, 1–12 kN
9 mm, 6 × 36, steel, 1.5–14 kN
10 mm, 6 × 36, steel, 1.5–18 kN
11 mm, 6 × 36, steel, 2–21 kN
12 mm, 6 × 36, steel, 2–25 kN
13 mm, 6 × 36, steel, 2.5–30 kN
5 mm, 6 × 19 FC, steel, 0.5–30 kN
10 mm, 6 × 19 FC, steel, 1.5–13 kN
12 mm, 6 × 19 FC, steel, 1.2–18 kN
5 mm, 6 × 19 FC, steel, 0.8–5 kN
6 mm, 6 × 19 FC, steel, 1–7 kN
8 mm, 6 × 19 FC, steel, 1–12 kN
Rent
Tension meter Dynarope HF36/1/LPT
Rental number: 20800-8001
CHF 350.– (per week, net, excluding VAT)

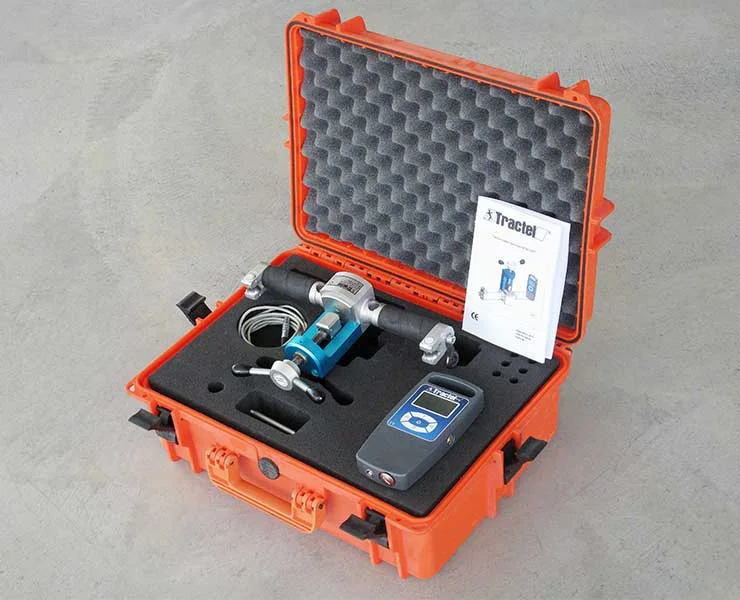

Tension meter Dynarope HF36/2/LPT
Rental number
20800-8002
Rope diameter
10–28 mm
Case dimensions (H × W × D)
640 × 515 × 250 mm
Net weight of the device
16 kg
Calibration (Rope diameter, rope construction, material, measurement range)
10 mm, 1 × 19, steel, 4–33 kN
14 mm, 1 × 19, steel, 5–50 kN
16 mm, 1 × 19, steel, 5–60 kN
19 mm, 1 × 19, steel, 5–50 kN
8 mm, 1 × 19, stainless steel, 0.1–9.1 kN
12 mm, 1 × 19, stainless steel, 1.60–23.100 kN
22 mm, 1 × 19, stainless steel, 21.0–79.1 kN
26 mm, 1 × 37, stainless steel, 41.0–109.1 kN
10 mm, 6 × 19, steel, 1.6–14.1 kN
12 mm, 6 × 19, steel, 1.6–23.1 kN
16 mm, 6 × 19, steel, 11.0–39.1 kN
20 mm, 6 × 19, steel, 41.0–59.1 kN
Rent
Tension meter Dynarope HF36/2/LPT
Rental number: 20800-8002
CHF 450.– (per week, net, excluding VAT)

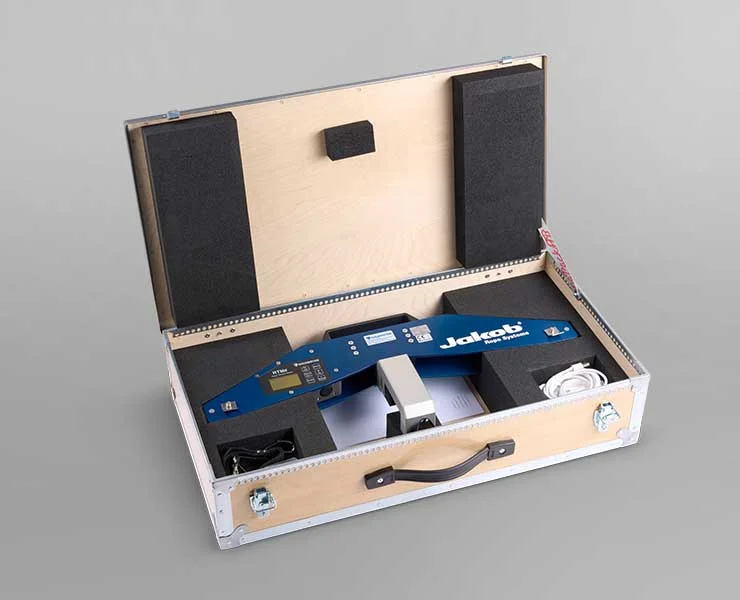

Tension meter PIAB RTMe 20t
Rental number
20800-8003
Net weight of the device
6 kg
Calibration (Rope diameter, rope construction, material, measurement range)
24.8 mm, 1 × 37, steel, up to 190 kN
32.0 mm, 1 × 61, steel, up to 220 kN
Rent
Tension meter PIAB RTMe 20t
Rental number: 20800-8003
CHF 450.– (per week, net, excluding VAT)
Inquiry about rope tension meter rental
Please complete the form. We will get back to you.
Prices
The prices apply to rope diameters and rope construction that have been calibrated and stored on the rope tension meters. The price for other rope diameters or rope constructions will be determined on a case-by-case basis.
Rental fee
The minimum billing period is one week. The rental period begins on the collection or dispatch date and ends when the rental equipment arrives at Jakob Rope Systems in Trubschachen. Any training will be invoiced separately.
Calibration
The rope tension meters are calibrated for specific rope diameters and rope constructions. Please specify in your inquiry the rope diameter and rope construction for which you intend to use the device.
Safety
Work safety must be observed when using the rope tension meters. For work involving a risk of falling, personal protective equipment (PPE) and/or lifting platforms must be used. Users must have completed the necessary training and be provided with the appropriate equipment.
Taut ropes pose a considerable danger to life and limb. Therefore, only trained personnel may carry out such work.
Training
If you would like instructions or advice, please contact our sales team. All devices are insured against machine breakage. Damage due to gross negligence is not covered by the insurance.
